EcooGraphix CTP Plate LCD Touchable Screen Densitometer
Introduction
In the printing industry, dots primarily determine hue and gradation, serving as the foundation for image reproduction and color accuracy. As the smallest ink-receptive units in offset printing, dots replicate the hue, gradation, and tonal range of original designs.
Precise dot control is critical, as variations can affect multiple print quality parameters:
- Sharpness and detail reproduction
- Gradation smoothness
- Hue accuracy
- Contrast and tonal balance
- Ink density consistency
- Black overprint performance
Our advanced dot measurement technology ensures precise plate inspection and dot quality control. It supports all contemporary screening technologies:
- Amplitude Modulation (AM) screening
- Frequency Modulation (FM) screening
- Specialized screening methods
- Hybrid screening technologies
Product Parameters
Our Advantages
1. Android OS with HD 720 Capacitive Touchscreen, Data Storage, and Wireless Transmission
The device operates on the Android OS, offering a user-friendly interface and seamless integration with third-party apps and devices. Its open-source architecture ensures compatibility with existing workflows and network systems.
Equipped with a 720p HD capacitive touchscreen, the device delivers crisp visuals and responsive touch control, enabling intuitive operation for tasks such as menu navigation, settings adjustment, and image zooming.
Built-in storage capabilities allow for the retention of both captured images/videos and measurement data, facilitating quality control, trend analysis, and reporting through historical data comparison.
Wireless network transmission enables real-time data sharing, remote access, and cloud integration, streamlining collaborative workflows across departments or multiple locations.
2. Real-Time HD Shooting of Micro Image Dots for Revealing Dot Quality in Detail
The device enables real-time high-definition imaging of micro-scale dots, capturing pixel-level details essential for precision printing and material analysis. Its advanced imaging capabilities excel at revealing subtle dot structure imperfections - including misalignment, blurring, and degradation - that critically impact final product quality.
This detailed defect visualization facilitates immediate issue identification and correction, significantly enhancing quality control while minimizing material waste throughout the production process.
3. Measurement APP with Advanced Image Processing Technology and Eight Measuring Instruments
The integrated measurement app employs cutting-edge image processing technology to automatically analyze captured images with exceptional precision. Its sophisticated algorithms enable accurate detection and measurement of various features including lines, dots, angles, and areas.
The system incorporates eight specialized measurement instruments designed for comprehensive analysis. Key capabilities include dot ratio and screening line evaluation for assessing print quality, along with precise length, angle, and area measurement tools for detailed geometric analysis.
4. Electronic Precise Focusing with Step Motor
The system utilizes an electronic step motor to achieve precise focusing, offering superior accuracy and consistency compared to manual adjustment methods. By moving the lens in minute, controlled increments, the step motor ensures exact focus alignment—a critical capability for high-precision micro-imaging applications.
5. Convenient Data Storage Through Built-In One-Button Shoot
The one-button shoot feature streamlines operation by enabling simultaneous capture of images and measurement data with minimal user input. This integrated system automatically saves both visual and quantitative data in a single step, ensuring efficiency while eliminating potential data loss.

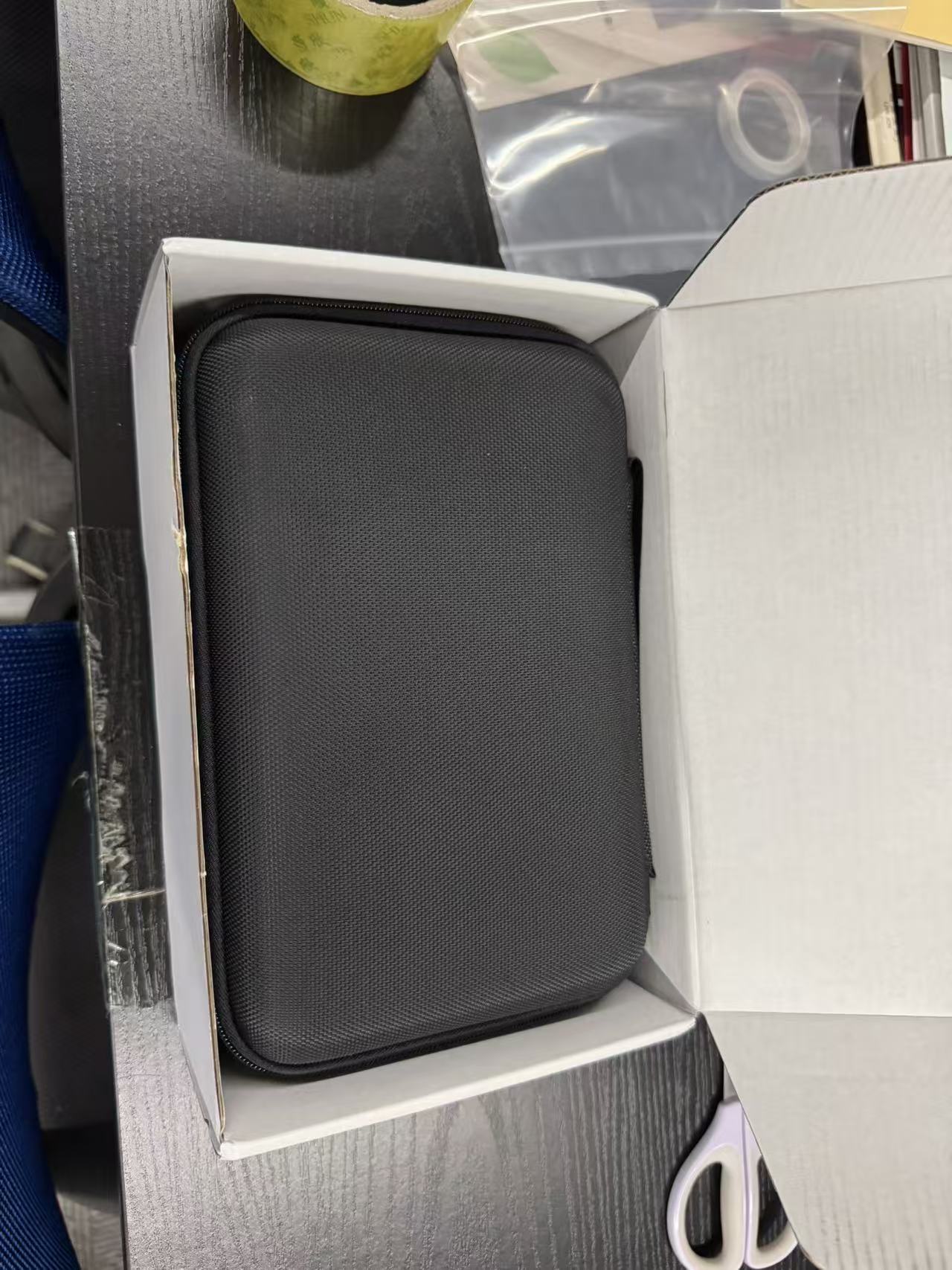

Packaging and Shipping
Certification
FAQ
Lead Time: Standard production requires 30 working days after deposit confirmation. Expedited options may be available upon request.
Payment Terms: We require a 30% deposit via bank transfer (T/T) to initiate production, with the remaining 70% balance due prior to shipment. Alternative payment methods can be discussed for established partners.
Packaging: Standard shipments use reinforced cartons with ECOO branding, but we fully accommodate custom packaging requirements (labels, logos, or specific materials) at no additional cost when specified in advance.
Shipping Options: Orders ship via FOB Ningbo/Shanghai as standard. We also support CIF (cost, insurance, and freight) and DDU (delivery duty unpaid) terms—please indicate your preference when ordering.
Samples: Complimentary test samples (10 plates standard) are available upon request to evaluate quality and compatibility. Sample lead times typically match production timelines.
