Digital Roll To Sheet Laser Die Cutter with Max 27m/min Cutting Speed and Max 330mm Label Width

1 conjunto
MOQ
Negociable
Precio
Digital Roll To Sheet Laser Die Cutter with Max 27m/min Cutting Speed and Max 330mm Label Width
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Diámetro del rodillo máximo: 450 mm
Max Label Width: 330 mm
Cuchillas de corte: 4pcs máximo
Velocidad de corte: 27m/min máximo
Garantía: Un año
Peso: 1400kgs
Ancho máximo: 288 a 330 mm
Aplicaciones: Cortando con tintas, el laminar, rajando, corte de hoja
Resaltar:

Max 27m/min Cutting Speed Laser Die Cutter

,

Max 330mm Label Width Digital Die Cutting Machine

,

Max 4pcs Cutting Blades Label Die Cutter
Información básica
Lugar de origen: PORCELANA
Nombre de la marca: ECOOGRAPHIX
Certificación: CE
Número de modelo: VD3350L
Documento: Digital Label Die Cutter VD...0 .pdf
Pago y Envío Términos
Detalles de empaquetado: Embalaje de exportación estándar
Tiempo de entrega: Alrededor de 20 días
Condiciones de pago: L/C, T/T
Capacidad de la fuente: 300 conjunto
Descripción de producto

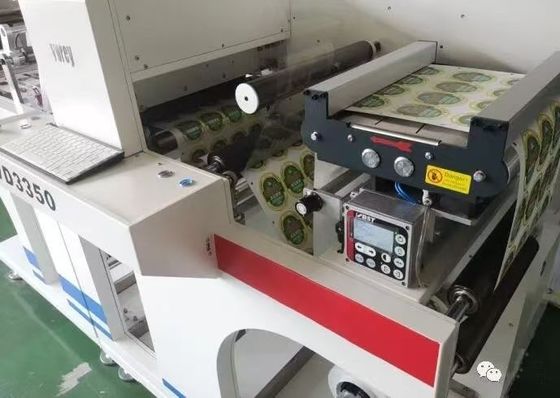

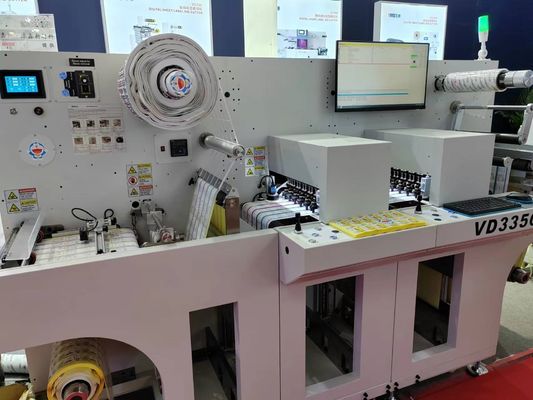

Digital Roll To Sheet Label Laser Die Cutter With Laminating
The laser die-cutting machine is a digital processing device integrating multiple advanced technologies, combining automatic label material conveyor, automatic web guide, laser flying cutting, and automatic waste removal into one system.
It is suitable for diverse processing solutions ranging from roll-to-roll to roll-to-sheet applications. The machine efficiently handles precision cutting requirements for non-metallic materials such as adhesive labels, PP synthetic paper, PVC film, cardboard, and offset paper, encompassing full-cut, half-cut, flying line, punching, and waste removal composite processes.
With its mold-free digital processing capability, the system directly drives the cutting process through electronic file data, significantly improving production efficiency for small-batch orders, effectively shortening product delivery cycles, and providing flexible and efficient smart manufacturing solutions for personalized customization needs.

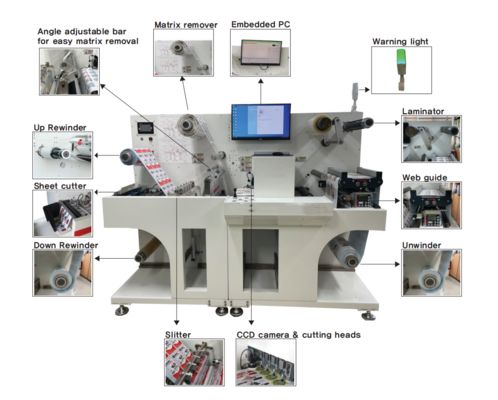

Product Features
  • High precision feeding system Utilizes ultrasonic web-guide system to ensure perfect material feeding.
  • Cold laminating Includes cold laminating function for bright, perfect labels. Back liner removal is optional.
  • Digital die-cutting system Features high precision screw transmission system with maximum speed of 9m per minute. Individual control for 4 heads with auto-adjust distance function.

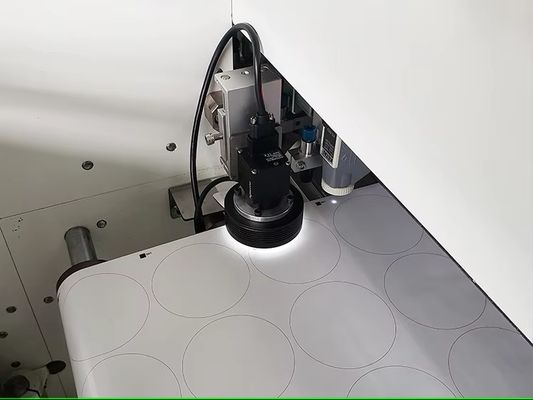

  • CCD identify system CCD camera position and identify system recognizes sequences for automatic file changing and next graphic cutting.
  • Waste removing system Dual mechanical force expansion control with multi-angle waste discharge frame ensures uniform waste removal and clean products.
  • Built-in sheet cutting system Optional built-in PC350 slitter for wired cutting and synchronous die-cutting/sheet cutting.
Digital Roll To Sheet Laser Die Cutter with Max 27m/min Cutting Speed and Max 330mm Label Width 0 Digital Roll To Sheet Laser Die Cutter with Max 27m/min Cutting Speed and Max 330mm Label Width 1 Digital Roll To Sheet Laser Die Cutter with Max 27m/min Cutting Speed and Max 330mm Label Width 2 Digital Roll To Sheet Laser Die Cutter with Max 27m/min Cutting Speed and Max 330mm Label Width 3 Digital Roll To Sheet Laser Die Cutter with Max 27m/min Cutting Speed and Max 330mm Label Width 4
