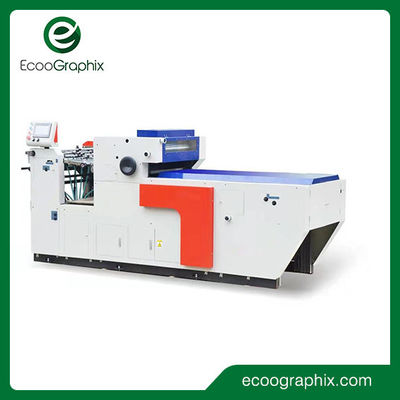

High Speed Automatic UV Varnishing Machine with Auto-Feed and Curing System for 620×450mm Sheets

1 juego
MOQ
Negociable
Precio
High Speed Automatic UV Varnishing Machine with Auto-Feed and Curing System for 620×450mm Sheets
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Nombre del producto: Máquina ULTRAVIOLETA de la capa y el barnizar
Aplicación: Haber impreso de papel, cartón
Tamaño de Max.Sheet: 620×450m m
Tamaño de Min.sheet: 260×190m m
Peso de la hoja: 60-350G/M2
Velocidad de producción: 5500 hojas/hora
Fuerza: 15kw
Lámpara UV: 2pcsx5.6kw
Peso: 1200 kg
Dimensión: 2950x1200x1450m m
Resaltar:

620×450mm UV Varnishing Machine

,

Auto-Feed UV Varnishing Machine

,

Curing System UV Coating Machine
Información básica
Lugar de origen: Porcelana
Nombre de la marca: EcooGraphix
Certificación: CE, ISO900
Número de modelo: ECOO CF-620A
Pago y Envío Términos
Detalles de empaquetado: Paquete exportador estándar: Cartón de Polywood
Condiciones de pago: LC, T/T
Capacidad de la fuente: 500 conjuntos por año
Descripción de producto
High Speed Automatic UV Varnishing Machine For Printing And Packaging Ecoo CF-620A
Automatic Spot and Overall UV Coating Machine - ECOOO CF-620A
The Ecoo CF 620A UV coating machine offers spot UV and overall UV coating for various printed and packaging products including books, posters, and adhesive stickers. Equipped with an auto-feed system, vanishing system, curing system, and auto-delivery system, this machine enhances the quality and value of printed materials, leading to increased profitability for printing companies. Renowned for its high speed and efficiency, it has earned accolades from clients worldwide.
Specification
Model Ecoo CF-620A
Max.sheet size 620*450mm
MIN.sheet size 260*190mm
Sheet weight 60-350g/m2
Production speed 5500 sheet/hour
Power 15KW
UV lamp 2pcsx5.6kw
Weight 1200KG
Dimension 2950*1200*1450mm
High Speed Automatic UV Varnishing Machine with Auto-Feed and Curing System for 620×450mm Sheets 0
Producing And Packaging
High Speed Automatic UV Varnishing Machine with Auto-Feed and Curing System for 620×450mm Sheets 1 High Speed Automatic UV Varnishing Machine with Auto-Feed and Curing System for 620×450mm Sheets 2 High Speed Automatic UV Varnishing Machine with Auto-Feed and Curing System for 620×450mm Sheets 3 High Speed Automatic UV Varnishing Machine with Auto-Feed and Curing System for 620×450mm Sheets 4 High Speed Automatic UV Varnishing Machine with Auto-Feed and Curing System for 620×450mm Sheets 5 High Speed Automatic UV Varnishing Machine with Auto-Feed and Curing System for 620×450mm Sheets 6 High Speed Automatic UV Varnishing Machine with Auto-Feed and Curing System for 620×450mm Sheets 7
FAQ
1. What are your main products?
We Ecoographix is a specialized supplier of printing machines and consumables. We cover both digital printing and offset printing, including prepress, pressroom and post press, focusing on packaging printing and book printing. We have hundreds of users all over the world. We bring forward top quality of Chinese printing products to meet diversified printing requirements.
2. Where is your factory?
Our sale office is in Hangzhou, one hour by train away from Shanghai. Our factories are in Shanghai, Wenzhou, Suzhou and Nanyang.
3. What is your warranty?
Normally 1 year.
4. Can you also supply the software?
Yes
5. What about the Installation and after-sales technician support?
Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours.
