Inicio /Productos/Papel termal que raja la máquina el rebobinar/1400mm Thermal Paper Slitting Rewinding Machine with 300mm Rewinding Diameter and 1200mm Unwinding Diameter for Fax and POS Rolls

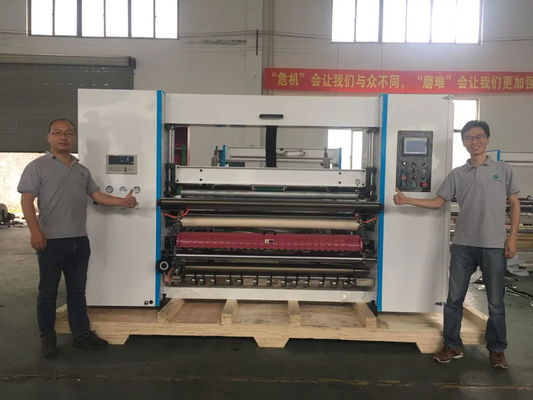

1400mm Thermal Paper Slitting Rewinding Machine with 300mm Rewinding Diameter and 1200mm Unwinding Diameter for Fax and POS Rolls

1 juego
MOQ
Negociable
Precio
1400mm Thermal Paper Slitting Rewinding Machine with 300mm Rewinding Diameter and 1200mm Unwinding Diameter for Fax and POS Rolls
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Formato máximo: 1400 mm
Máx. Velocidad: 300 m/min
Diámetro máximo el rebobinar.: 300 mm
Max, el día de descanso.: 1200 milímetros
Garantía: 1 año
Aplicación: rollo de fax, rollo de caja registradora, rollo ATM, rollo ECG, rollo POS, rollo de caja, rollo de p
Resaltar:

300mm Rewinding Diameter Slitting Rewinding Machine

,

1200mm Unwinding Diameter Paper Roll Slitter Rewinder

,

90-degree Vertical Lay-on Roller Thermal Paper Slitting Rewinding Machine
Información básica
Lugar de origen: Porcelana
Nombre de la marca: Ecoographix
Certificación: ISO9000, ISO20001, CE
Número de modelo: ECOO 1400C
Pago y Envío Términos
Detalles de empaquetado: caja de madera
Tiempo de entrega: 35 días
Condiciones de pago: LC, T/T
Capacidad de la fuente: 300 conjuntos por año
Descripción de producto
1400mm Thermal Paper Slitting Rewinding Machine
High-performance slitting and rewinding machine designed for fax rolls, cash register rolls, ATM rolls, ECG rolls, POS rolls, till rolls, and MG kraft paper rolls.
Technical Specifications
Parameter Value
Max. Rewinding Diameter 300mm
Min. Slitting Width 30mm
Max. Unwinding Diameter 1200mm
Max. Unwinding Width 1400mm
Max. Speed 300m/min
Unwinding Shaft 3" (76mm) air-expanding shaft
Rewinding Shaft 0.5", 1" (size customizable)
Total Power 5Kw
Voltage 380V/50Hz
Key Features
  • China's first 1400mm width thermal roll slitting machine
  • 55% higher small roll output compared to 900mm width machines
  • Shaftless hydraulic jumbo roll loading system
  • Photoelectric sensor or photocell for precise web guiding
  • 90-degree vertical lay-on roller for optimal performance
  • Banana roller prevents overlapping issues
1400mm Thermal Paper Slitting Rewinding Machine with 300mm Rewinding Diameter and 1200mm Unwinding Diameter for Fax and POS Rolls 0
Machine Components
Unwinding Section: Shaftless unwind stand with hydraulic jumbo roll loading, fully automatic tension controller, 20kg/m² electromagnetic brake from Taiwan, photoelectric sensor or photocell for web guiding, and direction adjustable balancing roller.
Slitting Section: Upper circular knives fixed by screws and lower circular knives fixed by aluminum spacer for precision cutting, rotary encoder for automatic slit length metering.
Rewinding Section: Automatic tucker for tail tucking, 90° vertical lay-on roller with up/down movement capability, banana roller to prevent overlapping.
Control System: Siemens PLC with touch screen HMI, Yaskawa AC drive for Siemens master motor, Schneider low voltage electrical components.
Waste Removal: Edge waste blower through expulsion tube.
Optional Accessories
  • Safety guard
  • 4-corner emergency switches
  • Transmission belt
  • Blower and shredder
  • Safety fence
1400mm Thermal Paper Slitting Rewinding Machine with 300mm Rewinding Diameter and 1200mm Unwinding Diameter for Fax and POS Rolls 1
About Ecoographix
With 7 years of industry experience, Ecoographix is a leading Chinese manufacturer providing comprehensive prepress and post-press solutions:
Prepress Equipment: CTP machines, flexo CTP machines, inks, developers, processors, CTP/CTCP plates, blankets.
Postpress Equipment: Die-cutting machines, automatic punching machines, book binding machines, carton erecting machines, paper cone cup machines, automatic folder gluers.
Visit us at: www.ecoographix.com
