Semi Automatic A2 Book Cover Carton Thermal Film Laminator with Double-sided Laminating UV Dryer and Hot Knife

1 Juego
MOQ
Negociable
Precio
Semi Automatic A2 Book Cover Carton Thermal Film Laminator with Double-sided Laminating UV Dryer and Hot Knife
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Peso neto: 4000 kilos
Tamaño máximo de papel: (Largo)760×(Ancho)590
Mínimo tamaño de la hoja: (Largo)200×(Ancho)240
Tamaño de la máquina: (Largo)550×(Ancho)130×(Alto)180(cm)
Velocidad de la máquina: 0~80m/min
Temperatura que lamina: 80-110℃
Información básica
Lugar de origen: PORCELANA
Nombre de la marca: ECOOGRAPHIX
Certificación: CE,SGS
Número de modelo: YFMB750
Pago y Envío Términos
Detalles de empaquetado: Embalaje estándar de exportación
Tiempo de entrega: 30 días
Condiciones de pago: LC, T/T
Capacidad de la fuente: 500 juegos
Descripción de producto

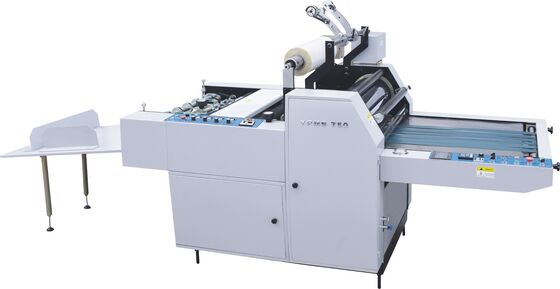

Semi Automatic A2 Book Cover Carton Thermal Film Laminator
Product Overview

The YFMB 750 is a semi-automatic precoating hot laminating machine that utilizes pre-coated film (BOPP/PET with adhesive) for both hot (heated rollers) and cold (pressure only) lamination processes.

Applications

This professional laminating equipment is designed for plastic film application on paper printed materials, widely used in:

  • Packaging materials
  • Paper boxes and cartons
  • Books, magazines, and calendars
  • Handbags and gift boxes
  • Wine packaging paper

Enhances print material quality while providing dust-proof, water-proof, and oil-proof protection. Suitable for printing and laminating enterprises of all scales.

Compatible Films: OPP, PET, PVC, METALLIC, and other precoated or thermal laminating films.

Main Features
  • Double-sided laminating (optional - both sides laminated simultaneously)
  • Dust removal system with surface preheating for enhanced brightness and fit
  • UV dryer for strong fastness, especially for embossing applications (optional)
  • Chain knife for cutting tailless and high-toughness films like PET and aluminum foil (optional)
  • Hot knife for high-speed slitting of tough films (optional)
  • Corona device for improved ink adhesion on laminated surfaces (optional)
  • Static elimination device for paper adhesion control (optional)
  • Embossing system for decorative surface aesthetics (optional)
Technical Specifications
Model YFMB-750
Max. Sheet (W x L) 590 × 760 mm
Min. Sheet (W x L) 200 × 240 mm
Machine Speed 0-80 m/min (one side)
Paper Thickness 100-450 g/m²
Voltage 380V
Paper Feed Height 680 mm
Paper Stack Height 650 mm
Laminating Temperature 80-110 ℃
Power Required 18 kW
Dimensions (L × W × H) 5500 × 1300 × 1800 mm
Net Weight 4000 kg
Semi Automatic A2 Book Cover Carton Thermal Film Laminator YFMB-750
